JVM Architecture

What is Virtual?
        In computing, virtual is a digitally replicated version of something real. The replication, which is created with software, may not be an exact copy of the actual item, but it is similar enough in essence to be described as a digital rendition.

A Java virtual machine (JVM) is an abstract computing machine that enables a computer to run a Java program. There are three notions of the JVM:

specification, implementation, and instance.

• The specification is a document that formally describes what is required of a JVM implementation. Having a single specification ensures all implementations are inter-operable.
• A JVM implementation is a computer program that meets the requirements of the JVM specification.
• An instance of a JVM is an implementation running in a process that executes a computer program compiled into Java bytecode.

Best example of virtual machine is calculator in computer; it is worked like physical calculator.

All virtual machines categorized in to 2 types :

1. Hardware based or System based Virtual Machine

2. Software based or Application based or process based Virtual Machine

• System virtual machines (also termed full virtualization VMs) provide a substitute for a real machine. They provide functionality needed to execute entire operating systems. A hypervisor uses native execution to share and manage hardware, allowing for multiple environments which are isolated from one another, yet exist on the same physical machine. Modern hypervisors use hardware-assisted virtualization, virtualization-specific hardware, primarily from the host CPUs.
• Process virtual machines are designed to execute computer programs in a platform-independent environment.

JVM:

     JVM is the part of JRE and it is responsible to load and run the java class file. The following picture depicts basic architecture of the JVM.

The first component in JVM is Class Loader Sub System

1. Class Loader Sub System

     This system is responsible for loading .class file with 3 activities

              a. Loading

              b. Linking

              c. Initialization

a. Loading

     Loading means read .class file from hard disk and store corresponding binary data inside method area of JVM. For each .class file JVM will store following information

1. Fully qualified name of class

2. Fully qualified name of immediate parent

3. Whether .class file represents class|interface|enum

4. Methods|Constructors|Variables information

5. Modifiers information

6. Constant Pool information

    After loading the class file and store inside method area, immediately JVM will perform one activity i.e., create an object of type java.lang.Class in method area.

     Created object is not student object or customer object. It is a predefined class “Class” object that is presently in java.lang package. The created object is represents either student class binary information or customer class binary information.

     Here the created class “Class” object is used by programmer. For example,

     Here Employee class object created two times, but class is loaded only once. In the above program even through we are using Employee class multiple times only one class Class object got created.

b. Linking

      After “loading” activity JVM immediately perform Linking activity. Linking once again contain 3 activities,

        1. Verification

        2. Preparation

        3. Resolution

     Java language is the secure language. Through java spreading virus, malware these kind of this won't be there. If you execute old language executable files (.exe) then immediately we are getting alert message saying you are executing .exe file it may harmful to your system.

     But in java .class files we never getting these alert messages. What is the reason is inside JVM a special component is there i.e., Byte Code Verifier. This Byte Code Verifier is responsible to verify weather .class file is properly formatted or not, structurally correct or not, generated by valid compiler or not. If the .class file is not generated by valid compiler then Byte Code Verifier raises runtime error java.lang.VerifyError. This total process is done in verification activity.

    In preparation phase, JVM will allocate memory for class level static variables and assigned default values.

E.g. For int ---> 0, For double ---> 0.0, For boolean ---> false

    Here just default values will be assigned and original values will be assigned in initialization phase.

      Next phase is Resolution. It is the process of replacing all symbolic references used in our class with original direct references from method area.

     For the above class, class loader sub system loads Resolution.class, String.class, Student.class and Object.class. Every user defined class the parent class is Object.class so every sub class its parent class must be loaded. The names of these classes are stored in "Constant Pool" of "Resolution" class.

     In Resolution phase these names are replaced with Actual references from the method area.

c. Initialization

      In Initialization activity, for class level static variables assigns original values and static blocks will be executed from top to bottom.

    While Loading, Linking and Initialization if any error occurs then we will get run-time Exception saying java.lang.LinkageError. Previously we discussed about Verify Error. This is the child class of Linkage Error.

Types of class loaders in class loader subsystem

        1. Bootstrap class loader/ Primordial class loader

        2. Extension class loader

        3. Application class loader/System class loader

1. Bootstrap class loader
     Bootstrap class loader is responsible for to load classes from bootstrap class path. Here bootstrap class path means, usually in java application internal JVM uses rt.jar. All core java API classes like String class, StringBuilder class, StringBuffer class, java.lang packages, java.io packages etc are available in rt.jar. This rt.jar path is known as bootstrap class path and the path of rt.jar is

jdk --> jre --> lib --> rt.jar

     This location by default consider as bootstrap class path. This Bootstrap class loader is responsible for loading all the classes inside this rt.jar. This Bootstrap class loader is implemented not in java it is implemented by native languages like C, C++ etc.


2. Extension class loader

     The extension class loader is the child of bootstrap class loader. This class loader is responsible to load classes from extension class path

jdk --> jre --> lib-->ext -->*.jar

     The extension class loader is responsible for loading all the classes present in the ext folder. This Extension class loader is implemented in java only. The class name of extension class loader is

sun.misc.Launcher$ExtClassLoader.class

3. Application class loader

     The Application class loader is the child of Extension class loader. This class loader is responsible to load classes from Application class path. Application class path means classes in our application (Environment variable class path). It internally uses environment variable path. This Application class loader is implemented in java only. The class name of application class loader is

sun.misc.Launcher$AppClassLoader.class

How Java Class loader works?

     Class loader sub system follows delegation hierarchy algorithm. The algorithm simply looks like as following.

     JVM execute java program line by line. Whenever JVM come across a particular class first JVM will check weather this .class file is already loaded or not. If it is loaded JVM uses that loaded class from method area otherwise JVM will requests class loader sub system to load the .class file then class loader sub system sends that request to application class loader.

     Application class loader won't load that requested class, simply it delegates to extension class loader. Extension class loader also won't load that requested class, simply it delegates to boot strap class loader. Now boot strap class loader search in boot strap class path. If the class is found in boot strap class path then loaded otherwise it delegates to extension class loader.

     Now extension class loader searches in extension class path. If the class is found in extension class path then loaded otherwise it delegates to application class loader. Application class loader now searches in application class path.

     If the class is found in application class path then loaded. Suppose boot strap class loader unable find, extension class loader unable to find, application class loader unable to find then we will get run time exception called "ClassNotFound" exception. This is the algorithm that class loader sub system follows. This algorithm is called “Delegation hierarchy algorithm”.

     Here the highest priority will be bootstrap class path, if the class not found in bootstrap class path the next level priority is extension class path, if the class not found in extension class path the next level priority is application class path.

Customized class loader

     Sometimes we may not satisfy with default class loader mechanism then we can go for Customized class loader. For example

     Default class loader loads .class file only once even though we are using multiple times that class in our program. After loading .class file if it is modified outside , then default class loader won't load updated version of .class file on fly, because .class file already there in method area. To overcome this problem we are going to customized class loader.

    Whenever we are using a class, customised class loader checks whether updated version is available or not. If it is available then load updated version otherwise use already loaded existing .class file, so that updated version available to our program.

public class CustomizedClassLoader extends ClassLoader {
   public Class loadClass(String cname) throws ClassNotFoundException {
       // Check whether updated version available or not. If updated version is available then
          load updated version and returns corresponding class "Class" object. Otherwise return
          Class object of already loaded .class
   }
}

class CustomClassLoaderTest {
   public static void main( String arg[]) {
      Student s1 = new Student(); // Default class loader loads Student.class
      .
      .
      CustomizedClassLoader c = new CustomizedClassLoader();
      c.loadClass(Student); // Customized class loader checks updates and load updated version
      .
      .
      c.loadClass(Student); // Customized class loader checks updates and load updated version
   }
}

Note

     While designing/developing web servers and application servers usually we can go for customized class loaders to customized class loading mechanism.

2. Various Memory Areas in JVM

     Whenever a Java virtual machine runs a program, it needs memory to store many things, including byte codes and other information it extracts from loaded class files, objects the program instantiates, parameters to methods, return values, local variables, and intermediate results of computations. The Java virtual machine organizes the memory it needs to execute a program into several run-time data areas.

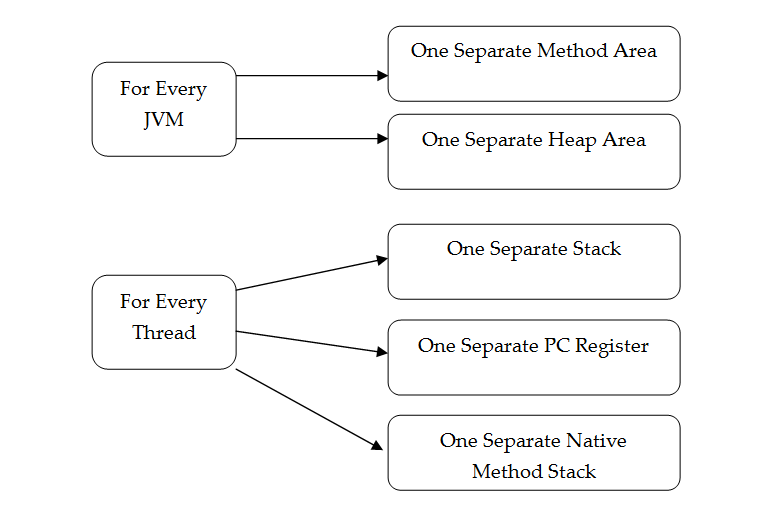

Various memory areas of JVM are

             1. Method Area

             2. Heap Area

             3. Stack Area

             4. PC Registers

             5. Native Method Stack

1. Method Area

* For every JVM one method area will be available

* Method area will be created at the time of JVM start up.

* Inside method area class level binary data including static variables will be stored

* Constant pools of a class will be stored inside method area.

* Method area can be accessed by multiple threads simultaneously.

* The size of the method area need not be fixed. As the Java application runs, the virtual machine can expand and contract the method area to fit the application's needs.

* All threads share the same method area, so access to the method area's data structures must be designed to be thread-safe.

2. Heap Area

* For every JVM one heap area will be available

* Heap area will be created at the time of JVM start up.

* Objects and corresponding instance variables will be stored in the heap area.

* Every array in java is object only hence arrays also will be stored in the heap area.

* Heap area can be access by multiple threads and hence the data stored in the heap area is not thread safe.

* Heap area need not be continued.

Display heap memory statistics
                                          A java application can communicate with JVM by using Runtime class object. A Runtime class is a singleton class and we can create Runtime object by using getRuntime() method.

Runtime run = Runtime.getRunner();

     Once we got runtime object we can call the following methods on that object.

1. maxMemory()

     It returns number of bytes of maximum memory allocated to the heap.

2. totalMemory()
     It returns number of bytes of total memory allocated to the heap.

3. freeMemory()
     It returns number of bytes of free memory present in the heap.
E.g

public class HeapSpaceDemo {
   public static void main(String[] args) {
      Runtime runtime = Runtime.getRuntime();
      System.out.println("Maximum memory " +runtime.maxMemory());
      System.out.println("Total memory " +runtime.totalMemory());
      System.out.println("Free memory " +runtime.freeMemory());
   }
}

Output
Maximum memory 889192448
Total memory 60293120
Free memory 58719832

Set Maximum and Minimum heap size
     Heap memory is a finite memory based on our requirement we can increase or decrease heap size. We can use following options for your requirement
-Xmx
     To set maximum heap size , i.e., maxMemory

    java -Xmx512m HeapSpaceDemo

     Here mx = maximum size

              512m = 512 MB

              HeapSpaceDemo = Java class name

-Xms

     To set minimum heap size , i.e., total memory

        java -Xms65m HeapSpaceDemo

      Here ms = minimum size

              65m = 65 MB

              HeapSpaceDemo = Java class name

or, you can set a minimum maximum heap size at a time

java -Xms256m -Xmx1024m HeapSpaceDemo

3. Stack Memory

    For every thread JVM will create a runtime stack at the time of thread creation. Each and every method call performed by the thread and corresponding local variables will be stored by in the stack,

    For every method call a separate entry will be added to the stack and each entry is called "Stack frame" or "activation record".

     After completing the method call the corresponding entry will be removed from the stack. After completing the all method calls the stack will become empty and that empty stack will be destroyed by the JVM just before terminating the thread.

     The data stored in the stack is private to the corresponding thread.

Stack Frame Structure

     Stack frame contains 3 parts

                                                  1. Local Variable Array

                                                  2. Operand Stack

                                                  3. Frame Data

i. Local Variable Array

* It contains all parameters and local variables of the method.

* Each slot in the array is of 4 bytes.

* Values of type int, float and reference occupied 1 slot in array.

* Values of type long, double occupied 2 consecutive entries in the array.

* Values of byte, short, char will be converted to int type before storing and occupy one slot.

* The way of storing boolean type is varied from JVM to JVM, but most of the JVM's follow one slot for boolean values.

Eg: public static void m1(long l, int i, double d, String s) {

                              ...........................

                              ...........................

       }



ii. Operand Stack

* JVM uses operand stack as work space.

* Some instructions can push the values to the operand stack and some instructions perform required operations and some instructions store results etc.

* The operand stack follows the last-in first-out (LIFO) methodology.

* For example, the iadd instruction adds two integers by popping two ints off the top of the operand stack, adding them, and pushing the int result. Here is how a Java virtual machine would add two local variables that contain ints and store the int result in a third local variable:

           iload_0    // push the int in local variable 0

           iload_1    // push the int in local variable 1

           iadd       // pop two ints, add them, push result

           istore_2   // pop int, store into local variable 2

iii. Frame Data

     In addition to the local variables and operand stack, the Java stack frame includes data to support constant pool resolution, all symbolic references related to that method, normal method return, and exception dispatch.

     This data is stored in the frame data portion of the Java stack frame. It also contains a referenced to exception table which contains corresponding catch block information in the case of exceptions. When a method throws an exception, the Java virtual machine uses the exception table referred to by the frame data to determine how to handle the exception.

     Whenever the Java virtual machine encounters any of the instructions that refer to an entry in the constant pool, it uses the frame data's pointer to the constant pool to access that information.

4. PC Registers (Program Counter Registers)

     For every thread a separate PC register will be created at the time of thread creation. PC register contains address of current executing instruction. Once instruction execution completes automatically PC register will be incremented to hold address of next instruction. An "address" can be a native pointer or an offset from the beginning of a method's byte codes.

5. Native Method Stacks

     Here also for every Thread a separate run time stack will be created. It contains all the native methods used in the application. Native method means methods written in a language other than the Java programming language. In other words, it is a stack used to execute C/C++ codes invoked through JNI (Java Native Interface). According to the language, a C stack or C++ stack is created.

     When a thread invokes a Java method, the virtual machine creates a new frame and pushes it onto the Java stack. When a thread invokes a native method, however, that thread leaves the Java stack behind. Instead of pushing a new frame onto the thread's Java stack, the Java virtual machine will simply dynamically link to and directly invoke the native method.

Execution Engine

     This is the core of the JVM. Execution engine can communicate with various memory areas of JVM. Each thread of a running Java application is a distinct instance of the virtual machine’s execution engine. The byte code that is assigned to the runtime data areas in the JVM via class loader is executed by the execution engine.

     The execution engine reads the Java Byte code in the unit of instruction. It is like a CPU executing the machine command one by one. Each command of the byte code consists of a 1-byte OpCode and additional Operand. The execution engine gets one OpCode and execute task with the Operand, and then executes the next OpCode. Execution engine mainly contain 2 parts.

                                                         1. Interpreter

                                                         2. JIT Compiler

     Whenever any java program is executing at the first time interpreter will comes into picture and it converts one by one byte code instruction into machine level instruction.  JIT compiler (just in time compiler) will comes into picture from the second time onward if the same java program is executing and it gives the machine level instruction to the process which are available in the buffer memory. The main aim of JIT compiler is to speed up the execution of java program.

1. Interpreter

     It is responsible to read byte code and interpret into machine code (native code) and execute that machine code line by line. The problem with interpret is it interprets every time even some method invoked multiple times which effects performance of the system. To overcome this problem SUN people introduced JIT compilers in 1.1 V.

2. JIT Compiler

     The JIT compiler has been introduced to compensate for the disadvantages of the interpreter. The main purpose of JIT compiler is to improve the performance. Internally JIT compiler maintains a separate count for every method. Whenever JVM across any method call, first that method will be interpreted normally by the interpreter and JIT compiler increments the corresponding count variable.

    This process will be continued for every method once if any method count reaches thread hold value then JIT compiler identifies that method is a repeatedly used method (Hotspot) immediately JIT compiler compiles that method and generates corresponding native code. Next time JVM come across that method call then JVM directly uses native code and executes it instead of interpreting once again, so that performance of the system will be improved. Threshold is varied from JVM to JVM. Some advanced JIT compilers will recompile generated native code if count reaches threshold value second time so that more optimized code will be generated.

    Profiler which is the part of JIT compiler is responsible to identify Hotspot (Repeated Used Methods).

Note

     JVM interprets total program line by line at least once. JIT compilation is applicable only for repeatedly invoked method but not for every method.

Java Native Interface (JNI)

     JNI is acts as a bridge (Mediator) for java method calls and corresponding native libraries.

Class File Structure

ClassFile {

    u4               magic_number;

    u2               minor_version;

    u2               major_version;

    u2               constant_pool_count;

    cp_info       constant_pool[constant_pool_count-1];

    u2               access_flags;

    u2               this_class;

    u2               super_class;

    u2               interfaces_count;

    u2               interfaces[interfaces_count];

    u2               fields_count;

    field_info   fields[fields_count];

    u2               methods_count;

    method_info  methods[methods_count];

    u2               attributes_count;

    attribute_info attributes[attributes_count];

}

magic_number

* The first 4 bytes of class file is magic number.

* This is a predefined value to identify the Java class file.

* This value should be 0xCAFEBABE.

* JVM will use this value to identify whether the class file is valid or not and also to know whether the class file is generated by valid compiler or not.

* Whenever we are executing a Java class if JVM unable to find magic_number then we will get runtime error saying java.lang.ClassFormatError : Incompatible magic number

major and minor versions

* major and minor versions represent class file version

* JVM will use these versions to identify which version of compiler generates the current .class file

* If a class file has major version number M and minor version number m, we denote the version of its class file format as M.m.

* Major and minor versions both are allocates 2 bytes

* The possible values are

 major  minor   Java platform version
 45       3           1.0
 45       3           1.1
 46       0           1.2
 47       0           1.3
 48       0           1.4
 49       0           1.5
 50       0           1.6
 51       0           1.7
 52       0           1.8

E.g

package com.ashok.jvm.test;

import java.io.*;

public class ClassVersionChecker {
    private static void checkClassVersion() throws Exception {
        DataInputStream in = new DataInputStream(new FileInputStream("D://Ashok /Test.class"));
        int magic = in.readInt();
        if (magic != 0xcafebabe) {
              System.out.println(" It is not a valid class!");
        }
        int minor = in.readUnsignedShort();
        int major = in.readUnsignedShort();
        System.out.println( major + " . " + minor);
        in.close();
   }
   public static void main(String[] args) throws Exception {
        checkClassVersion();
   }
}

Note:
     Higher version JVM can always run class files generated by lower version compiler but lower version JVM can't run class files generated by higher version compiler. If we are trying to run then we will get run time exception saying UnsupportedClassVersionError:Test : unsupported major.minor version.

constant_pool_count
     The value of the constant_pool_count item is equal to the number of entries in the constant_pool table plus one. The constant pool table is where most of the literal constant values are stored. This includes values such as numbers of all sorts, strings, identifier names, references to classes and methods, and type descriptors.

constant_pool[]
     It represents information about constants present in the constant table. The constant_pool is a table of structures (§4.4) representing various string constants, class and interface names, field names, and other constants that are referred to within the ClassFile structure and its substructures. The format of each constant_pool table entry is indicated by its first "tag" byte.

CONSTANT_Class
Tag : 7
Description : The name of a class

CONSTANT_Fieldref
Tag : 9
Description : The name and type of a Field, and the class of which it is a member.

CONSTANT_Methodref
Tag : 10
Description : The name and type of a Method, and the class of which it is a member.

CONSTANT_InterfaceMethodref
Tag : 11
Description : The name and type of a Interface Method, and the Interface of which it is a member.

CONSTANT_String
Tag : 8
Description : The index of a CONSTANT_Utf8 entry.

CONSTANT_Integer
Tag : 3
Description : 4 bytes representing a Java integer.

CONSTANT_Float
Tag : 4
Description : 4 bytes representing a Java float.

CONSTANT_Long
Tag : 5
Description : 8 bytes representing a Java long.

CONSTANT_Double
Tag : 6
Description : 8 bytes representing a Java double.

CONSTANT_NameAndType
Tag : 12
Description : The Name and Type entry for a field, method, or interface.

CONSTANT_Utf8
Tag : 1
Description : 2   bytes for the length, then a string in Utf8 (Unicode) format.

access_flags
     Access flags follows the Constant Pool. It is a 2 byte entry that indicates whether the file defines a class or an interface, whether it is public or abstract or final in case it is a class. Below is a list of some of the access flags and their interpretation.

Note

     A class may be marked with the ACC_SYNTHETIC flag to indicate that it was generated by a compiler and does not appear in source code.

this_class
     Next 2 bytes after access_flags is this_class. It represents the fully qualified name of the current class.

super_class
     Next 2 bytes after this_class is super_class. It represents the fully qualified name of the super class.

interfaces_count
     Next 2 bytes after super_class is interfaces_count. It represents the number of interfaces implemented by the current class.

interfaces[]

     It represents the names of interfaces implemented by the current class.

fields_count

     It represents the number of fields present in the current class.

fields[]

     It represents field information present in the current class.

methods_count

     It represents the number of methods present in the current class.

methods[]

     It represents method information present in the current class.

attributes_count

     It represents the number of attributes present in the current class.

attributes[]

     It represents attribute information present in the current class.
